24"x 6.56' 23mm Aluminum SEG Frame EM-18A1

EM-18A1 | 23mm Modular Aluminum SEG Wall Frame

Large-Scale Versatility: Engineered specifically for large-format, non-standard wall displays that exceed 1 meter (3.3ft) in length.
Modular "Extension-Pole" Logic: Side lengths are virtually unlimited thanks to precision mid-connectors that join multiple aluminum segments.
Ultra-Compact Logistics: All modular components are designed to fit in packaging under 45" (110cm), drastically reducing international freight costs.
Business Agility: Available as ready-to-assemble kits or bulk components, allowing resellers to build custom sizes locally on-demand.
Professional Finish: Features a sleek 23mm visible width aluminum profile with tool-free, hex-key assembly for a seamless look.
Ready for Scale: Backed by the Million Dollar Programme, supporting Blind Shipping and pre-shipment QC for global partners.

Inquiry

EM-18A1 | 23mm Aluminum SEG Wall Frame (Modular Series)

Large-Scale Versatility. Ultra-Compact Shipping. Zero-Tool Complexity.

The EM-18A1 is the professional aluminum evolution of our modular framing line. Engineered specifically for large-format, non-standard wall displays, this 23mm profile system bridges the gap between lightweight plastic frames and heavy industrial extrusions. By utilizing a modular "extension-pole" logic, the EM-18A1 allows you to build massive displays while maintaining a shipping footprint under 4ft (1.2m).

The B2B Advantage: "Stock Components, Build Anywhere"

This product is designed for the agile reseller. By stocking our modular profiles and connectors, you can:

Reduce Shipping Costs: Modular segments keep all packaging under 45" (110cm).
Zero Lead Time: Assemble custom sizes on-demand from your local inventory.
Infinite Scalability: Use our specialized mid-section connectors to join multiple profiles for displays exceeding 10ft+ with no loss in structural integrity.

Product Specifications (Standard Model: 24"x 6.56')

Feature	Specification
Model Number	EM-18A1 (610 x 2000 mm)
Frame Depth	23mm Aluminum Profile
Frame Material	Aluminum
Assembly Method	Hex-Key Modular Connection (Key included)
Standard Dimensions	24" x 6.56' (610 x 2000 mm)

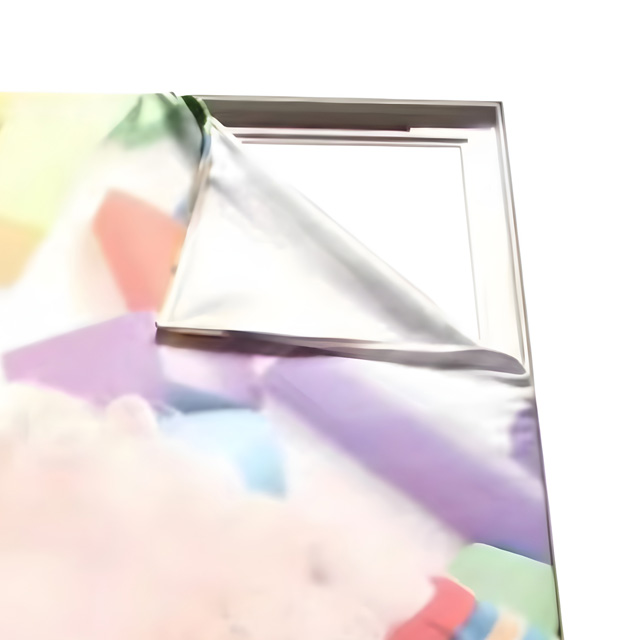

Graphic Attachment	Silicone Edge Graphics (SEG)
Mounting Hardware	Plastic Wall Plugs & Self-Tapping Screws (ST3.5x16) Included

Weight & Logistics Data (Professional Specs)

Metric	Kilograms (kg)	Pounds (lbs)
Net Weight (Frame Only)	2.0 kg	4.41 lbs
Gross Weight (Single Set w/ Carton)	3.0 kg	6.61 lbs
Bulk Master Carton (6 Sets)	19.7 kg	43.43 lbs

Packaging Dimensions:

Single Set Box: 4.3" x 4.3" x 43.3" (11 x 11 x 110 cm).
Master Carton (6 Sets): 13.8" x 9.4" x 44.5" (35 x 24 x 113 cm).

Structural Engineering & Assembly

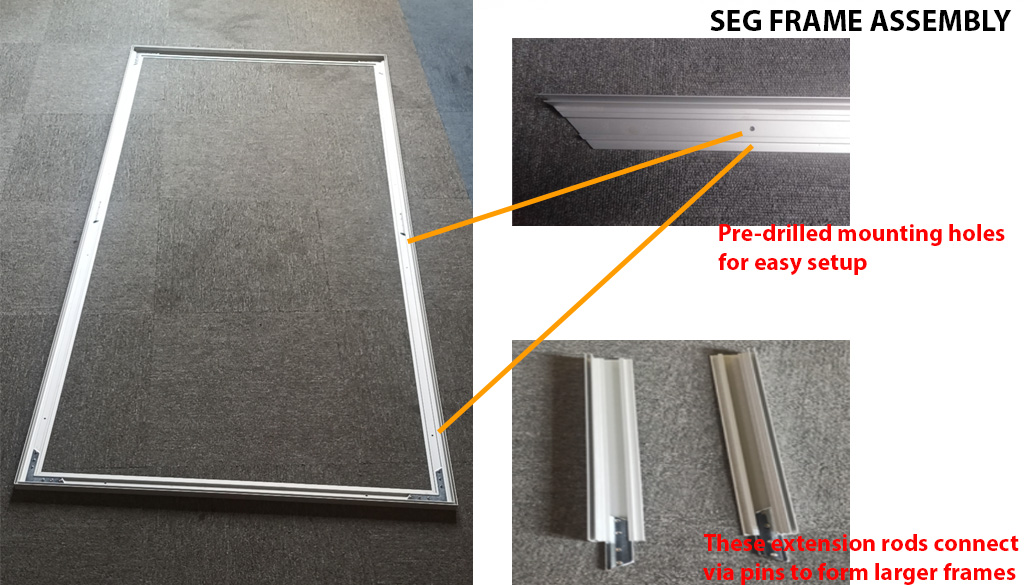

Modular Extension Logic: For frames where a single side exceeds 1 meter (3.3ft), the EM-18A1 uses precision mid-connectors to join multiple aluminum bars. There is no limit to the total length you can achieve.
Secure Wall Mounting: Every kit includes heavy-duty plastic expansion tubes and self-tapping screws (ST3.5x16) for a flush, professional wall mount.

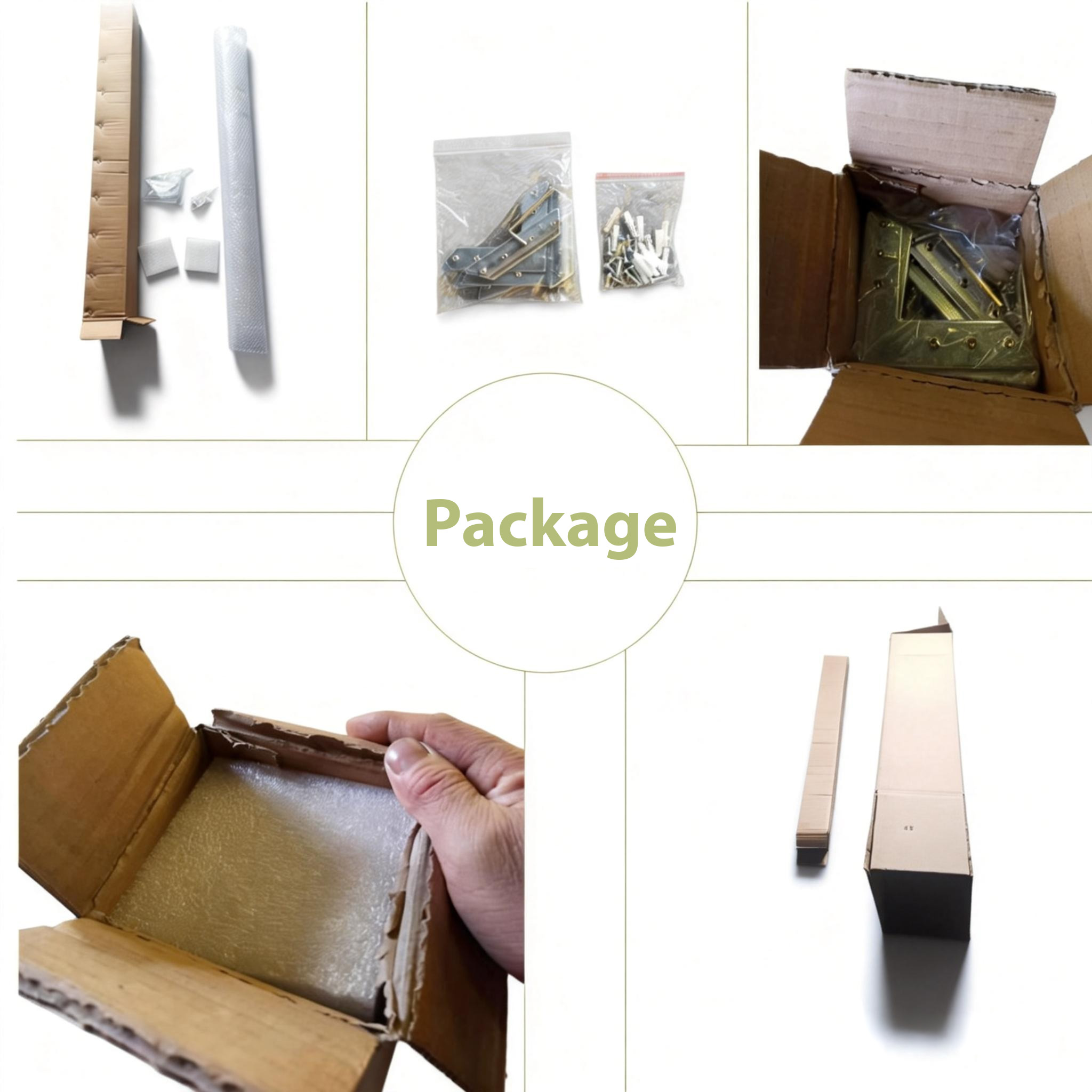

Protective Packaging: Profiles are tightly bound in stretch film and wrapped in shock-absorbing bubble wrap, with hardware secured at the carton ends to prevent scratches.

The SEGQUICK Partner Commitment

As a brand under Expomax, the EM-18A1 is backed by our Million Dollar Programme:

Free Technical Assets: 3D Renders, Installation Videos for your design team.
Blind Shipping: Ship directly to your client with 100% white-label integrity.
Absolute QC: We pre-install and check every modular connection before it leaves our facility.

Ready to customize your inventory?

[Request Custom Length Pricing]

[Apply for Distributor Wholesale Access]

SEGQUICK: Built for professionals who need display systems that work—every single time.

1. Technical & Structural

Q: What is the primary difference between the EM-18A (Plastic) and the EM-18A1 (Aluminum)?
A: While both share a modular philosophy, the EM-18A1 is crafted from high-grade 23mm aluminum extrusions. This provides the superior structural rigidity required for non-standard, large-format wall displays that plastic frames cannot support.
Q: Is there a limit to how large I can build a frame with the EM-18A1?
A: There is virtually no limit to the total length. Our system uses specialized mid-connectors to join multiple aluminum profiles. For any side exceeding 1 meter (3.3ft), we simply add extension poles to maintain stability while keeping the shipping package compact.
Q: Are custom lengths available for non-standard projects?

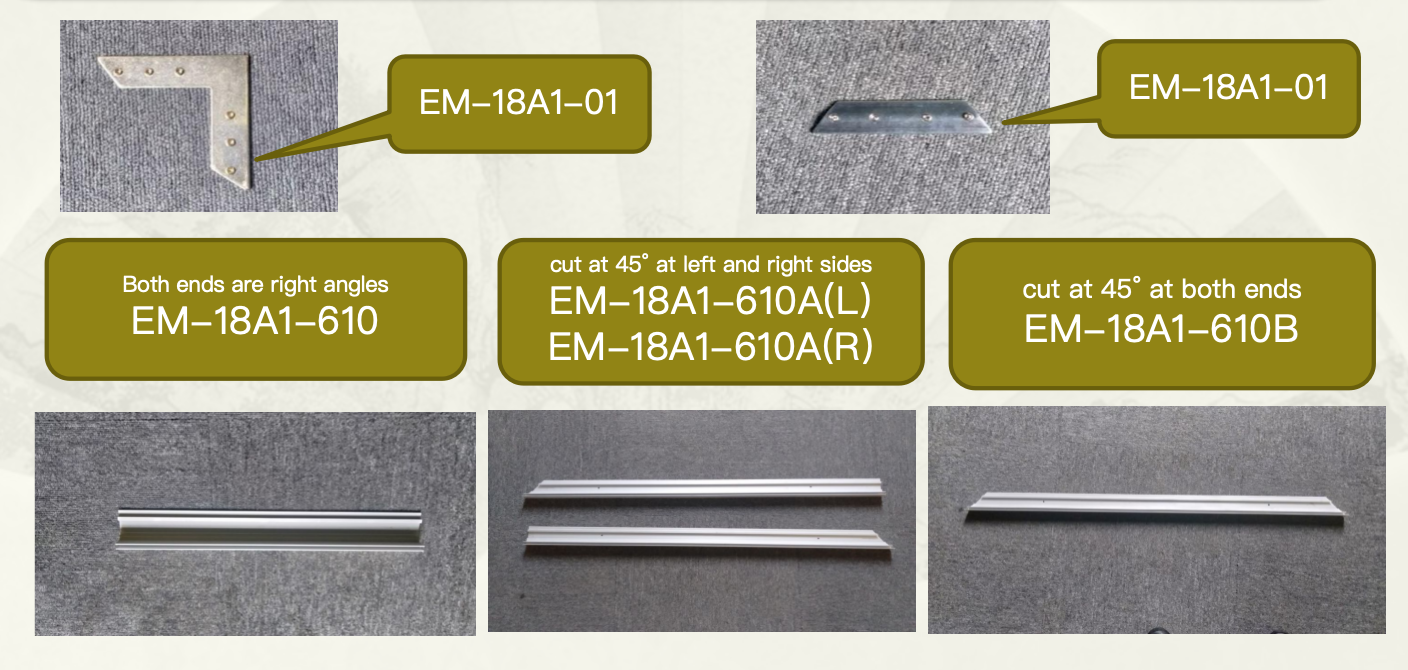

A: Yes. While we offer standard lengths (610mm, 707mm, 914mm, 1000mm), we also provide non-standard custom cutting services to meet your exact project specifications.

2. Logistics & Distribution (For Dealers)

Q: How does this product help reduce my international shipping costs?
A: Traditional large frames are expensive to ship due to "oversized" surcharges. The EM-18A1 is designed to be flat-packed, ensuring the outer carton remains under 1.2 meters (approx. 47"). This allows for standard courier rates and significantly higher loading efficiency in containers.
Q: Can I buy this product in "Component Form" instead of finished kits?
A: Absolutely. We encourage large distributors to purchase bulk profiles and hardware components. This allows you to cut and assemble custom sizes locally for your clients, drastically reducing lead times and saving on "air-shipping" finished goods from China.
Q: What are the packaging specifications for the standard 24" x 6.56' model?
A: A single set weighs only 6.61 lbs (3.0 kg). For bulk orders, we pack 6 sets into a master carton weighing 43.43 lbs (19.7 kg) with dimensions of $35 \times 24 \times 113$ cm.

3. Installation & Maintenance

Q: Does the frame come with all necessary mounting hardware?

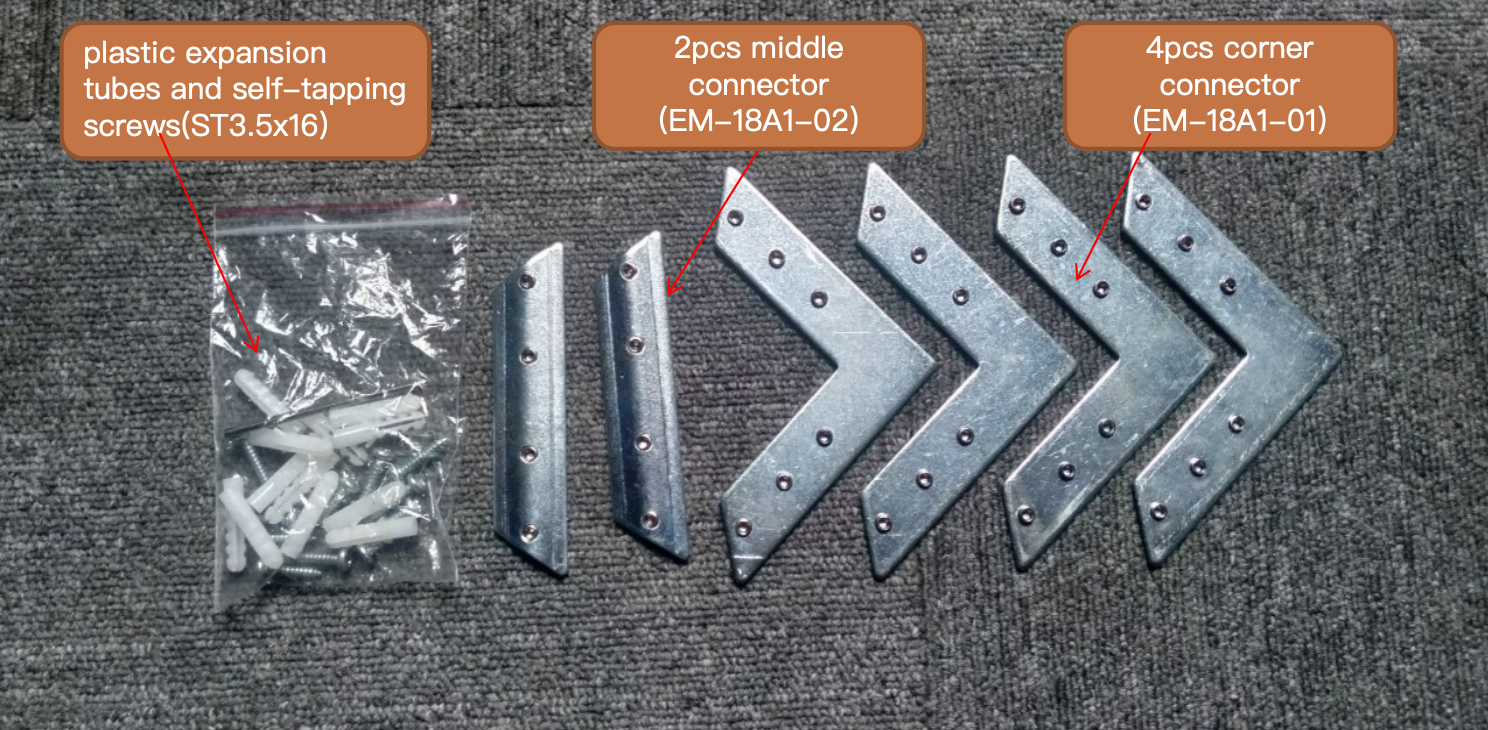

A: Yes. Each kit includes a specialized hex key, plastic expansion wall plugs, and ST3.5x16 self-tapping screws. It is a complete "out-of-the-box" solution for wall-mount applications.
Q: How do you ensure the profiles aren't scratched during transit?
A: We use a multi-layer protection strategy. Profiles are tightly bound with stretch film, then encased in shock-absorbing bubble wrap. All hardware is placed at the end of the carton to ensure no metal-on-metal contact with the aluminum surfaces.
