20ftx10ft 120mm SEG Lightbox Exhibtion Booth Solution 204 R1(B4D1D1B4)

Grand 20ft 3D Horizon: Creates a massive 6-meter panoramic presence with a sophisticated "Foreground-Background" layering effect that commands attention from across the hall.
Symmetrical Trapezoid Framing: Two B4 (1.5m wide) trapezoid modules frame the booth, adding architectural movement and a modern "Skyline" silhouette.
Maximum "Wide-Format" Impact: Utilizes two D1 (2.4m wide) backwalls, providing a massive, nearly seamless visual canvas for your primary brand message.
100% Connector-Free Freedom: Every unit (B4 and D1) is independent and free-standing. No mechanical connectors mean zero alignment stress and total flexibility in adjusting the "overlap" depth.
Ultra-Fast 20ft Setup: Despite its grand scale, the use of larger B and D series modules means fewer frames to assemble—ready for display in under 60 minutes.
Industrial 120mm Depth: Reinforced R1 profiles ensure that even the overlapping 1.5m and 2.4m spans remain rock-solid and perfectly illuminated.
Unified Reception Anchor: Includes the EM-08FA R1 Counter, centered to provide a symmetrical, professional engagement point.

Inquiry

R1 Solution 204 | The 20ft "Dual-Layer Horizon" Suite

Architectural Depth at Scale — Transforming 20ft Spaces into Immersive Environments

The R1 Solution 204 is the ultimate statement for brands that want to dominate a 20ft x 10ft footprint with a "Custom-Built" look. By utilizing independent spatial layering, this solution moves beyond the flat wall. Two Series B4 (Trapezoid) modules are positioned symmetrically in front of the Series D1 (Panoramic) backwalls, creating a rhythmic visual depth that guides visitors' eyes toward the center.

The dual D1 backwalls provide a staggering 18.8 feet (5.7m) of seamless, glowing brand real estate, while the B4 "wings" in the foreground add a sharp, geometric accent. This layout not only increases your branding surface area but also creates a sophisticated, multi-dimensional environment that encourages attendees to step inside the brand's world.

What’s Inside the Solution 106 Kit?

1x Panoramic Backdrop (Series D1): 94.21" x 89.76" seamless master frame.
1x Geometric Foreground (Series A4): 39.37" x 103.6"/89.76" trapezoid accent module.
1x Professional Anchor (EM-08FA R1 Counter): 120mm depth backlit reception hub.

Why Solution 204 Sells

"Double the Impact" Portfolio: This is a high-value rental asset. You can market it as a 20ft flagship, or split it into two independent 10ft "Solution 106-style" booths for two different clients, maximizing your ROI.
Grand-Format Efficiency: By using 1.5m (B) and 2.4m (D) modules instead of standard 1m frames, you reduce the number of vertical frame lines across the 20ft span, delivering a much cleaner, more premium aesthetic.
Zero-Hassle Logistics: Every piece segments into our standard reinforced cartons (under 56"), making it possible to ship a 20ft flagship booth via standard ground freight or in a small van.
Architectural Prestige: The "Overlap" technique is a hallmark of high-end custom design. Solution 204 allows you to offer this bespoke aesthetic at a fraction of the cost using standard modular stock.

Technical Configuration

Component	Model	Dimensions (W x H)	G.W. (lbs)	Packing Size

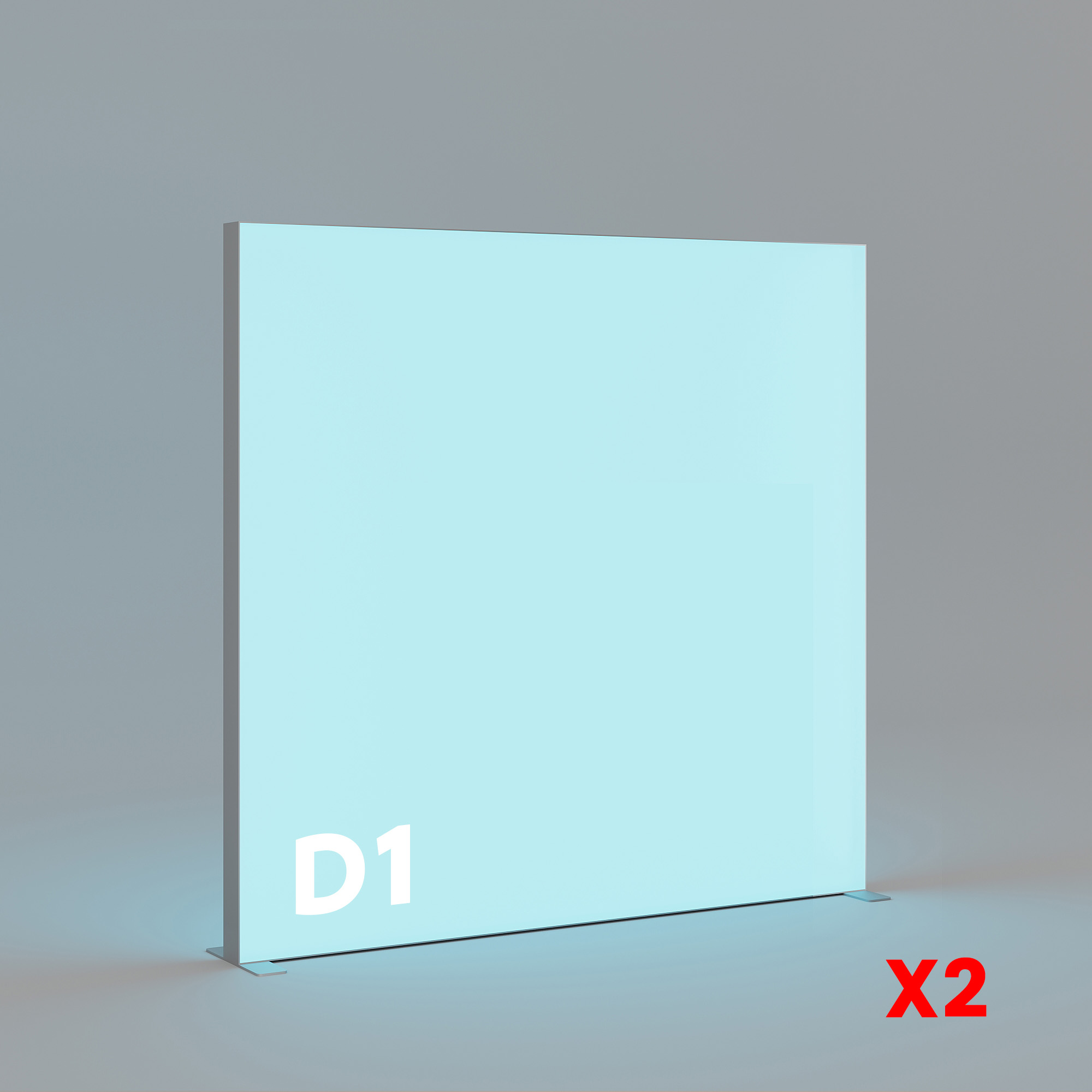

Panoramic Backdrop x 2	R1 Series D1	94.21" x 89.76"	46.30 lbs	55.9" × 18.9" × 7.9" x 2

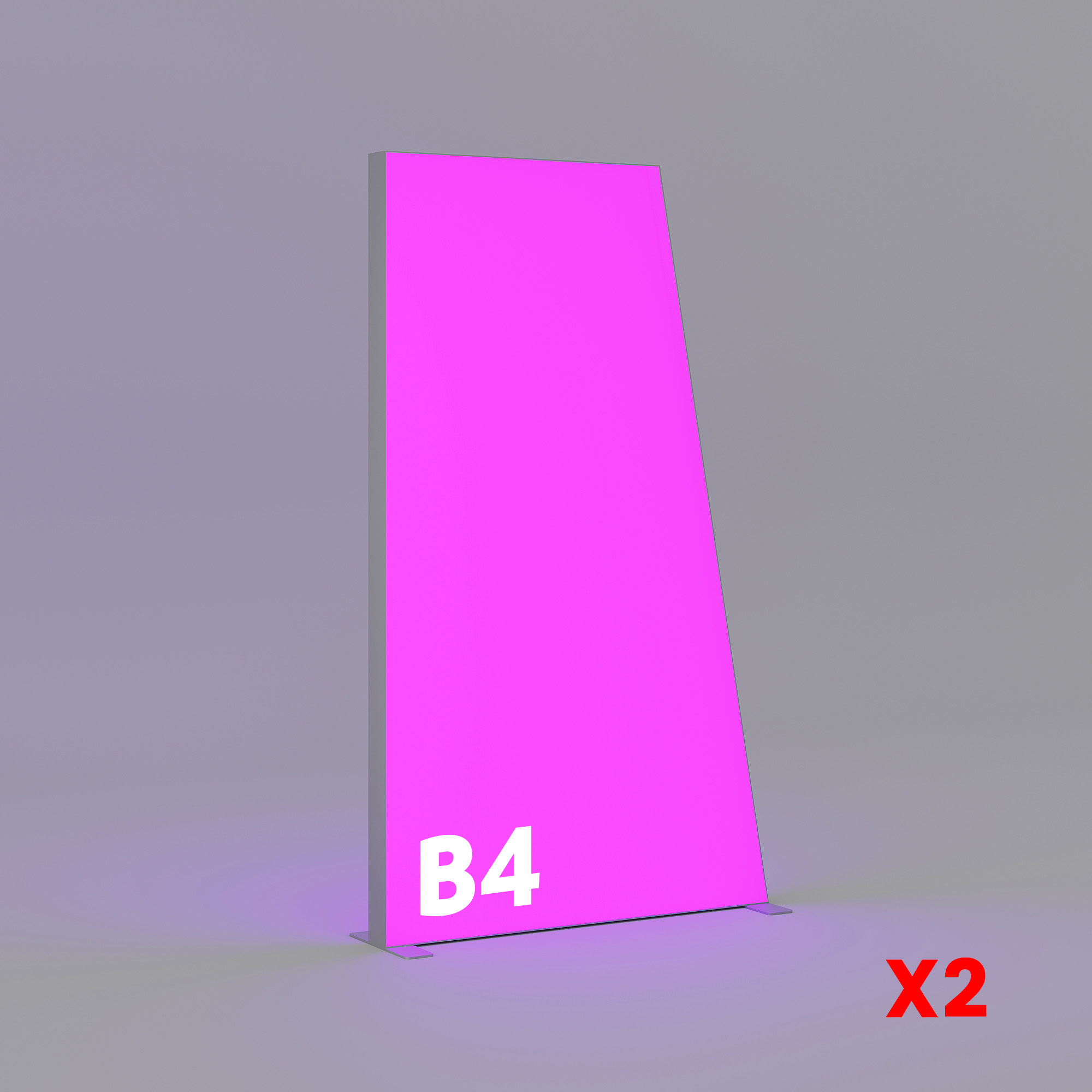

Trapezoid Accent x 2	R1 Series B4	58.07" x 103.6"/89.7"	36.60 lbs	55.9" × 18.9" × 7.9" x 2
Backlit Counter	EM-08FA R1	39.37" x 39.37" x 15.75"	27.58 lbs	44.48" x 15.74" x 8.66"
Booth Footprint	Full Set	20ft x 10ft (6m x 3m)	G.W. Approx. 196 lbs	0.65 cbm ( Frame Only)

Artwork Requirements

File Formats: We prefer PDF (Print Ready), AI (Text Outlined), PNG or JPEG.

Color Mode: CMYK mode ONLY. For specific branding, please provide Pantone Solid Coated codes.

Scale: Please set up files at 1:1 (Full Size) whenever possible. For extremely large files, use 1:10 scale (ensure resolution is adjusted accordingly).

Fonts: All fonts must be converted to outlines (paths) to avoid missing character issues.
