R1 Solution 203 | The 20ft "Symmetrical Dual-Arch" Pavilion
Architectural Balance Meets Interactive Power — A Double Statement of Brilliance
The R1 Solution 203 is designed for brands that demand a powerful, organized, and high-tech presence. This 20ft x 10ft environment utilizes a sophisticated axial symmetry layout. Two G3 Multi-functional Arches frame the booth's edges, while the center rises into a dramatic "Skyline" formed by two Series C3 (Oblique) modules.
To achieve a truly custom-built look, the central C3 modules are engineered with External Power Supplies. By removing internal switches from the profile edges, these massive 2-meter frames sit perfectly flush against each other. The result is a seamless, 20ft illuminated horizon with zero light leakage.
Why Solution 202 Sells
Dual-Media Capabilities: Instead of one demo area, you now have two. This allows your clients to run coordinated video content on both ends of the booth, framing their central brand message.
Engineering "Zero-Gap" Perfection: The external power modification on the C3 units is a premium feature that eliminates the "frame gaps" common in modular systems, allowing you to charge a premium for a "Seamless" service.
Unmatched Stability: By locking the G3 arches onto the A1 wings using our bolt-secured aluminum plates, the entire 20ft structure benefits from reinforced rigidity, even in high-traffic zones.
High-ROI Assets: Every module in this 20ft flagship is a star. You can rent them as 10ft kits or this 20ft "Super-Pavilion," ensuring your inventory is always working.
Technical Configuration
Component
Model
Dimensions (W x H)
G.W. (lbs)
Packing Size (inch)

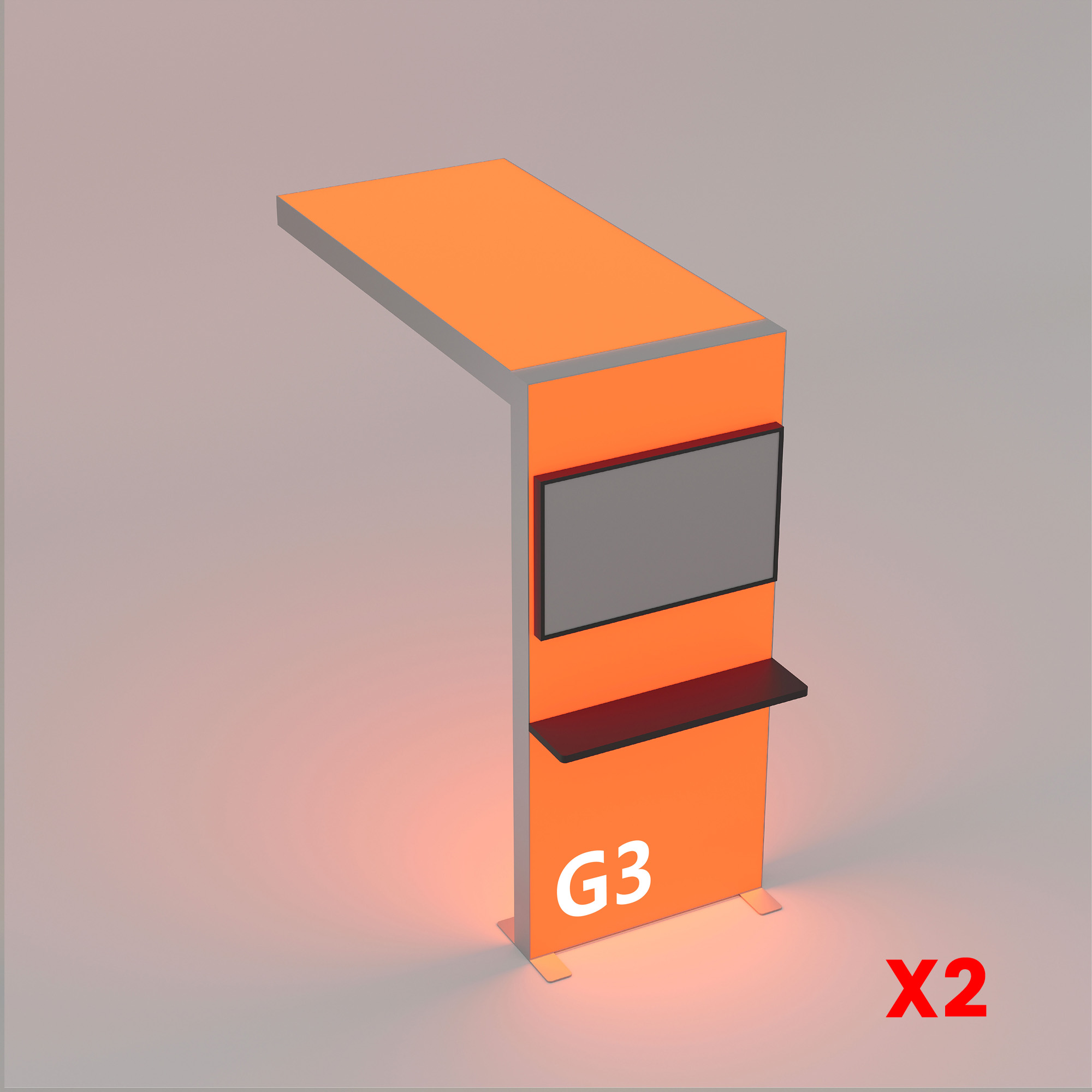

Interactive Arch x 2
R1 Series G3
39.37" x 89.76"–78.74"
44.31 lbs
[7.09" × 14.76" × 52.36" x 2+ 3.74" × 11.42" × 49.21" ] x 2

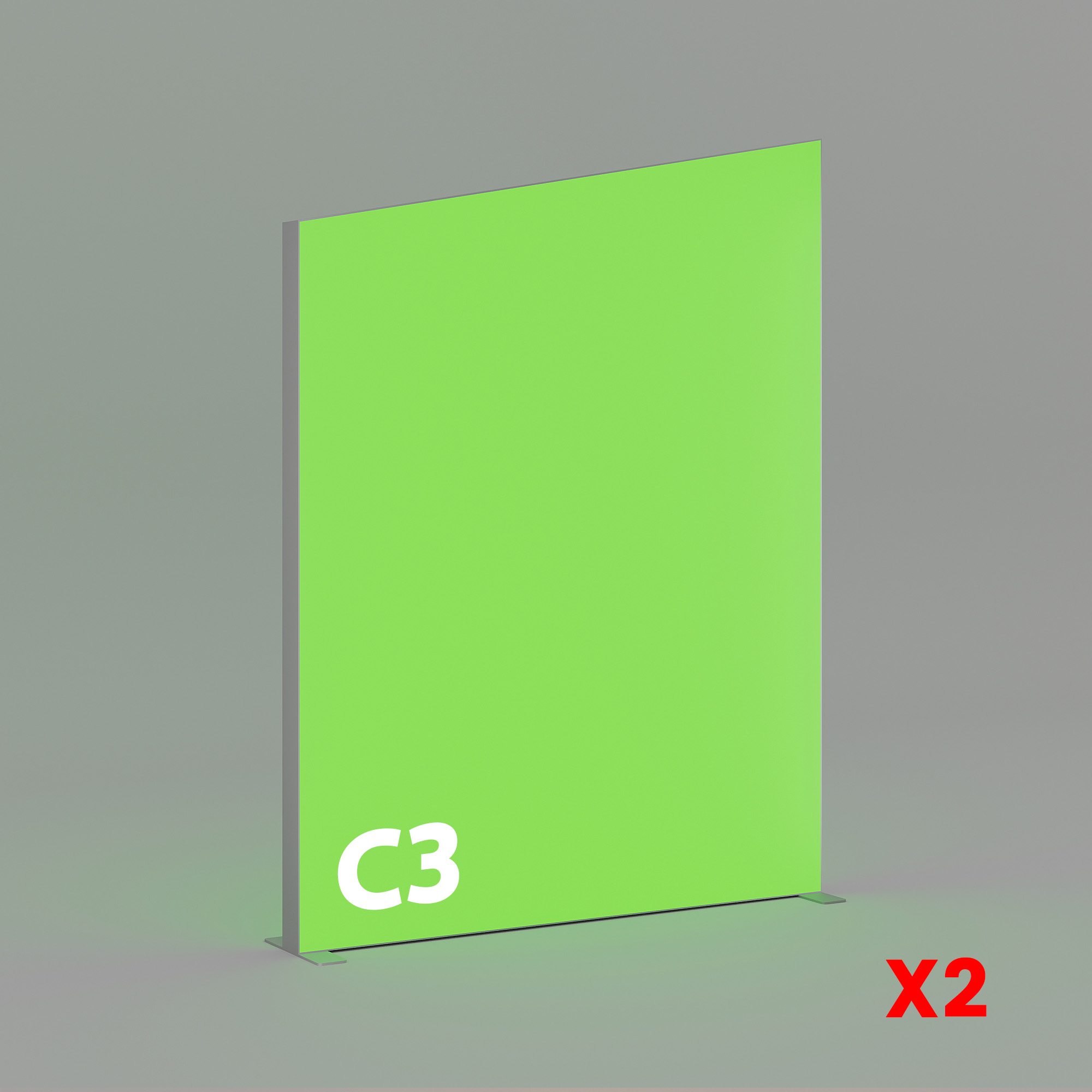

Center Peak (Left)
R1 Series C3
78.74" × 103.66" / 89.76"
44.09 lbs
55.1" × 23.6" × 7.9"
Center Peak (Right)
R1 Series C3
78.74" × 103.66" / 89.76"
44.09 lbs
55.1" × 23.6" × 7.9"
Wing Walls x 2
R1 Series A1
39.37" × 89.76"
32.19 lbs
48.0" × 15.0" × 7.9" × 2
Backlit Counter
EM-08FA R1
39.37" x 39.37" x 15.7"
27.58 lbs
44.48" x 15.74" x 8.66"
Full Booth Set
Solution 203
20ft x 10ft (6m x 3m)
~274 lbs
1.05cbm ( Frame Only)
Artwork Requirements
File Formats: We prefer PDF (Print Ready), AI (Text Outlined), PNG or JPEG.
Color Mode: CMYK mode ONLY. For specific branding, please provide Pantone Solid Coated codes.
Scale: Please set up files at 1:1 (Full Size) whenever possible. For extremely large files, use 1:10 scale (ensure resolution is adjusted accordingly).
Fonts: All fonts must be converted to outlines (paths) to avoid missing character issues.
Experience the Speed of Branding with SEGQUICK
One Inventory. Infinite Symmetry. Build it with SEGQUICK.
[ Ready to add the Dual-Arch Pavilion to your fleet? ]
Contact our B2B team for Solution 203 wholesale pricing and technical data.
[ Request a Quote Today ]
Q1: How do the two center C3 modules achieve a "Seamless" look?
A: We have specifically modified the C3 center modules with external power supplies. By relocating the power box and switch outside the frame, we've removed the 2-3mm hardware interference. This allows the two 2-meter C3 frames to be pushed perfectly flush together, creating an uninterrupted light field across the 4-meter center span.
Q2: Are the G3 arches stable enough when placed on the ends of a 20ft run?
A: Yes, significantly so. The G3 arches are secured to the A1 wing modules using external aluminum mounting plates with a vertical bolt-fixation system. This mechanical lock, combined with the alu feet of the A1, ensures the arches are rock-solid, even when supporting professional monitors.
Q3: Can this 20ft booth be split into two identical 10ft booths?
A: Absolutely. This is a major inventory advantage. You can rent this out as one 20ft Solution 203, or as two identical 10ft "Sloped Arch" kits for separate clients, effectively doubling your booking opportunities.
Q4: What makes the "Skyline" center (C3+C3) better than a flat wall?
A: It’s about "Architectural Rhythm." The rising slope of the C3 modules draws the eye toward the center of the booth where the primary branding is usually located. It creates a "mountain peak" effect that is much more memorable than a standard rectangular backdrop.
