20ftx10ft 120mm SEG Lightbox Exhibtion Booth Solution 202 R1(A4D1A1C1G3)

The Ultimate 20ft Flagship: A comprehensive 6-meter environment that combines a panoramic backwall, 3D layering, and an interactive architectural arch.
Interactive Media Hub: Features the G3 Bridge with integrated TV mount and shelving—turn your 20ft wall into a live demo station.
Dimensional "Overlap" Aesthetic: Utilizes the A4D1 staggered placement to create a physical foreground/background effect on the left wing.
Reinforced Arch Stability: The G3 Arch utilizes external aluminum mounting plates to securely lock onto the C1 module, ensuring safety for mounted monitors.
100% Connector-Free Backwall: The A4, D1, A1, and C1 modules are independent and free-standing, allowing for zero-hassle alignment and maximum layout flexibility.
Industrial 120mm Depth: Consistent profile depth across all 5 modules ensures a unified, high-intensity 6500K glow.
Optimized for ROI: A massive exhibit that can be broken down into multiple 10ft kits (like Solution 106 or 101), maximizing your rental inventory usage.

Inquiry

R1 Solution 202 | The 20ft "Interactive Pavilion" Suite

Architectural Depth, Multi-Media Integration, and Grand Format Brilliance

The R1 Solution 202 is engineered for brands that need to do it all in a 20ft space. By merging the best elements of the R1 Series, this solution creates a high-traffic environment with three distinct zones:

The Brand Impact Zone (Left): An overlapping A4/D1 layout that provides 3D depth and massive panoramic graphics.
The Interactive Zone (Right): A C1/A1 backwall anchored by the G3 Multi-functional Arch, designed for digital presentations and product showcases.
The Engagement Hub (Front): The EM-08FA Backlit Counter serves as the unified reception point.

The G3 Arch is the centerpiece of the interaction, bridging over the C1 module with a reinforced aluminum plate system to provide a rock-solid mounting point for TVs and display shelves.

Why Solution 202 Sells

"Three Booths in One": For an exhibit house, Solution 202 is a dream for inventory management. You can rent it as a 20ft flagship, or split it into two 10ft booths (Solution 106 and a variant of 101) for separate clients.
Built-in AV Capabilities: Most modular booths require separate, ugly TV stands. Solution 202 integrates the TV mount directly into the G3 Arch, saving floor space and creating a much higher-end "custom" appearance.
The Overlap Advantage: The A4D1 overlap on the left wing provides a sophisticated architectural look that distinguishes your service from competitors offering simple flat walls.
Safety-First Engineering: The use of external mounting plates for the G3-to-C1 connection ensures that even in high-traffic shows, the arch and mounted media remain perfectly stable.

Technical Configuration

Component	Model	Dimensions (W x H)	G.W. (lbs)	Packing Size (inch)
Panoramic Wall	R1 Series D1	94.21" × 89.76"	46.30 lbs	55.9" × 18.9" × 7.9"
Trapezoid Accent	R1 Series A4	39.37" / 21.89" × 99.37"	28.66 lbs	55.9" × 18.9" × 7.9"
Interactive Arch	R1 Series G3	39.37" x 89.76"–78.74"	44.31 lbs	7.09" × 14.76" × 52.36" x 2+ 3.74" × 11.42" × 49.21"
Standard Walls	R1 Series C1	78.74" × 89.76"	42.11 lbs	55.9" × 18.9" × 7.9"

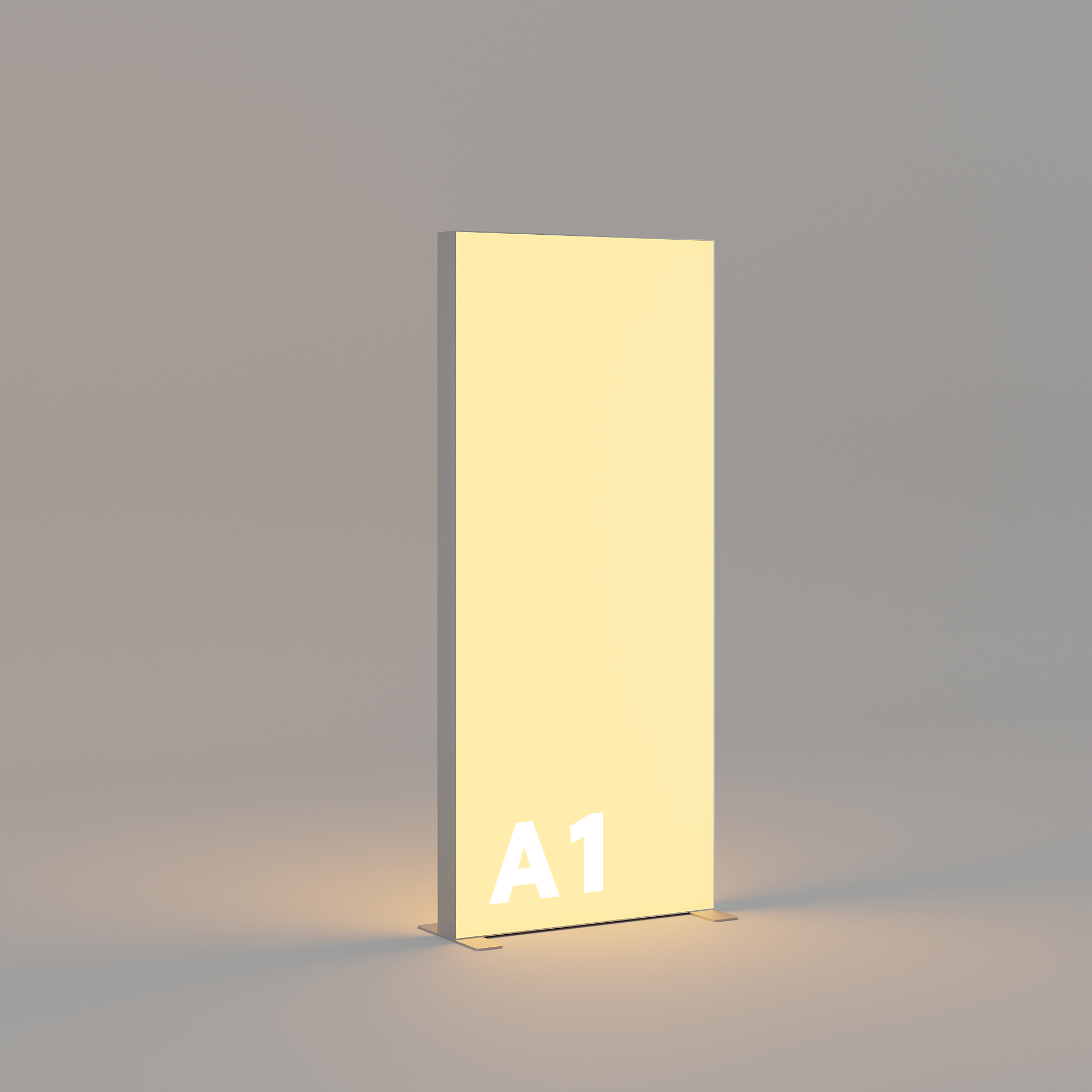

Standard Walls	R1 Series A1	39.37" × 89.76"	32.19 lbs	48.0" × 15.0" × 7.9"
Backlit Counter	EM-08FA R1	39.37" x 39.37" x 15.7"	27.58 lbs	44.48" x 15.74" x 8.66"
Full Booth Set	Solution 202	20ft x 10ft (6m x 3m)	~225 lbs	0.82cbm ( Frame Only)

Artwork Requirements

File Formats: We prefer PDF (Print Ready), AI (Text Outlined), PNG or JPEG.

Color Mode: CMYK mode ONLY. For specific branding, please provide Pantone Solid Coated codes.

Scale: Please set up files at 1:1 (Full Size) whenever possible. For extremely large files, use 1:10 scale (ensure resolution is adjusted accordingly).

Fonts: All fonts must be converted to outlines (paths) to avoid missing character issues.
