Panoramic 10ft Branding: Perfectly sized for standard 10x10ft booths, offering a massive 77 sq.ft of seamless backlit space.
-
Integrated LED Strip Tech: High-output LED strips are pre-mounted inside the frame, eliminating the need to hang light curtains and slashing setup time.
-
Proprietary Wireless Power: No external cables—power flows through the frame connectors for a flawless "Wireless" professional aesthetic.
-
High-Intensity 514lm Output: Each 2.8W LED bead provides a crisp 7083K daylight glow, engineered for uniform saturation across grand-format spans.
-
Industrial 120mm R1 Stability: Heavy-duty aluminum alloy frame maintains perfect geometry under high fabric tension, ensuring zero bowing.
-
Logistics-Friendly Engineering: Segmented rails allow this massive 3m wall to pack into one wheeled case and ship via standard courier (FedEx/UPS).
-
Certified for Global Tenders: Fully compliant with CE/UL Power Drivers, B1 Fire-Rated Graphics, and Drop-Test Certified Packaging.
EM-18FA-3000 | The Panoramic Pillar of Exhibition Excellence
118.11" x 8' High-Margin Wall: One System, Infinite Brand Dominance
The EM-18FA-3000 is the flagship "Hero Product" for professional display dealers. At 3 meters wide, it is the definitive solution for the standard 10ft exhibition booth. This unit doesn't just display a brand—it creates an immersive, luminous environment that instantly outclasses neighboring pop-up displays. For B2B partners, the 3000mm R1 series is the most profitable asset in any inventory, combining massive visual real estate with the simplicity of the SEGQUICKPRO modular system.
Why the "10ft Panoramic" is Your High-Margin Winner？
The "Zero-Effort" 10ft Booth Solution: In the exhibition world, the 10ft (3m) backwall is the most requested item. The EM-18FA-3000 allows you to offer a premium, architectural look that installs in under 15 minutes, allowing you to capture the high-end market that is tired of cheap, wrinkled fabric banners.

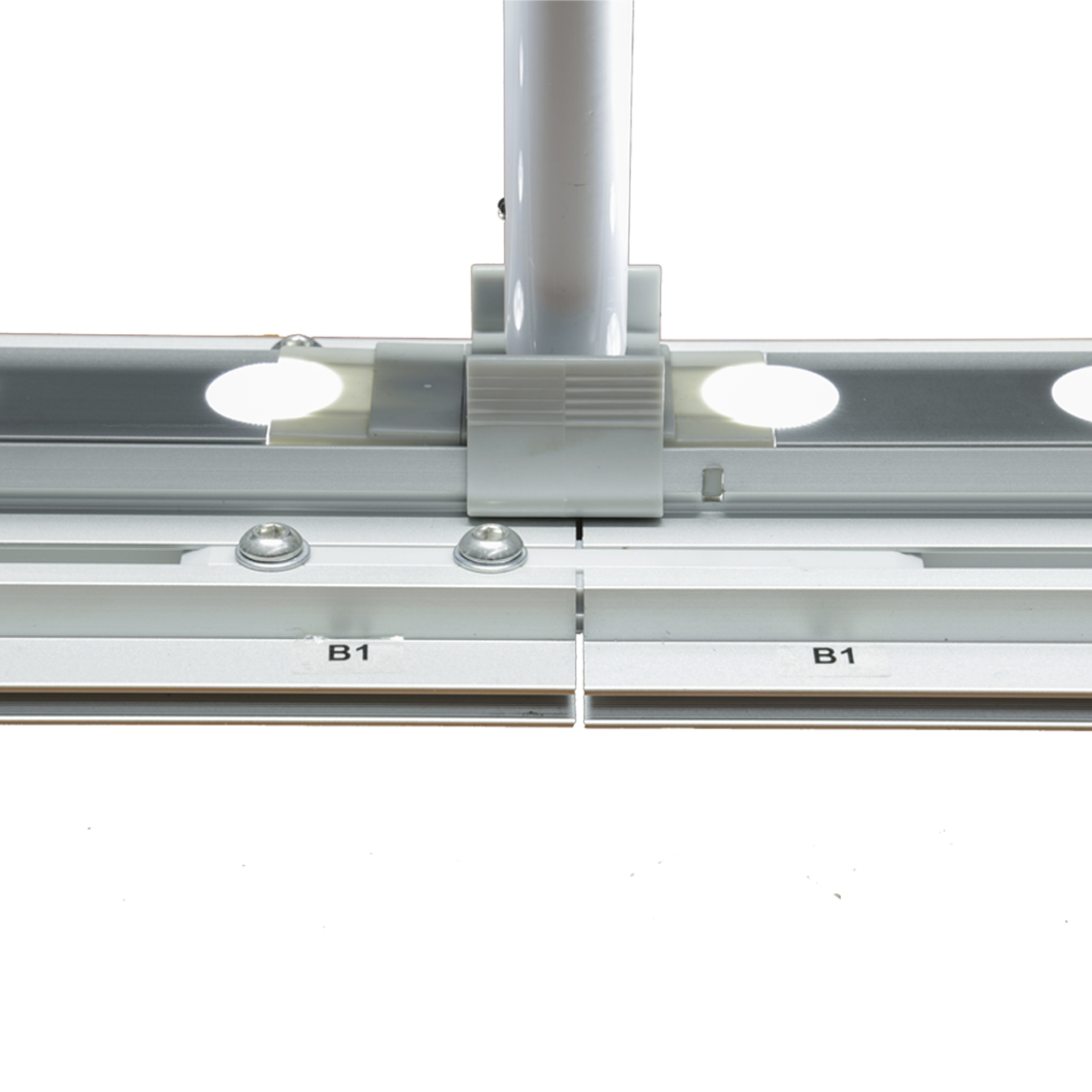

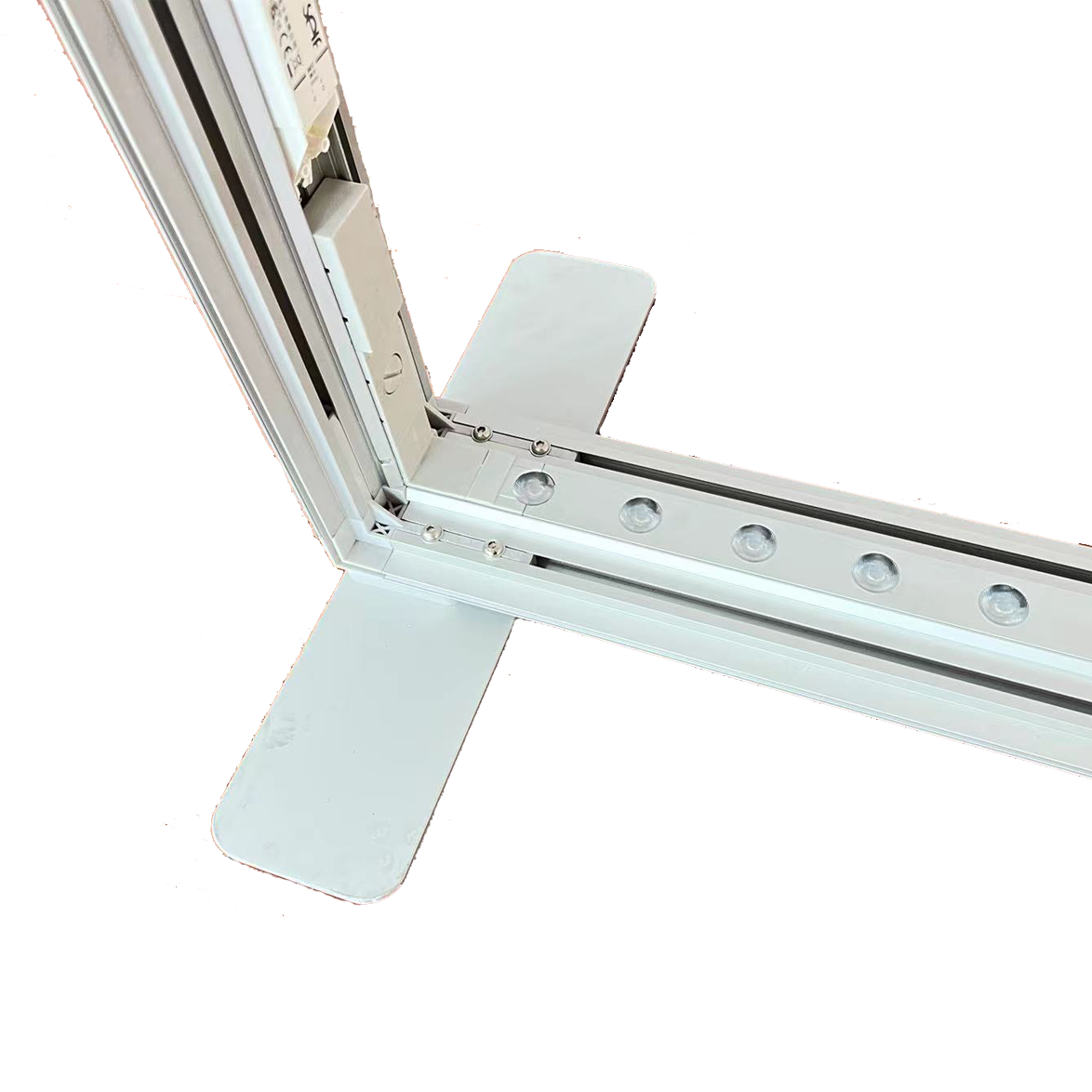

Ultra-Fast Assembly: The LED light strips are pre-installed within the 120mm aluminum profiles. Your clients don't need to spend time hanging or connecting light curtains—just click the frames together and the lighting is ready.
Unmatched Shipping Efficiency: Despite its 118" width, the EM-18FA-3000 is engineered with Precision-Segmented Rails. It packs into a single wheeled case, allowing you to ship a massive 3-meter wall via standard courier (FedEx/UPS), avoiding the $500+ "Oversized Freight" surcharges common with other brands.

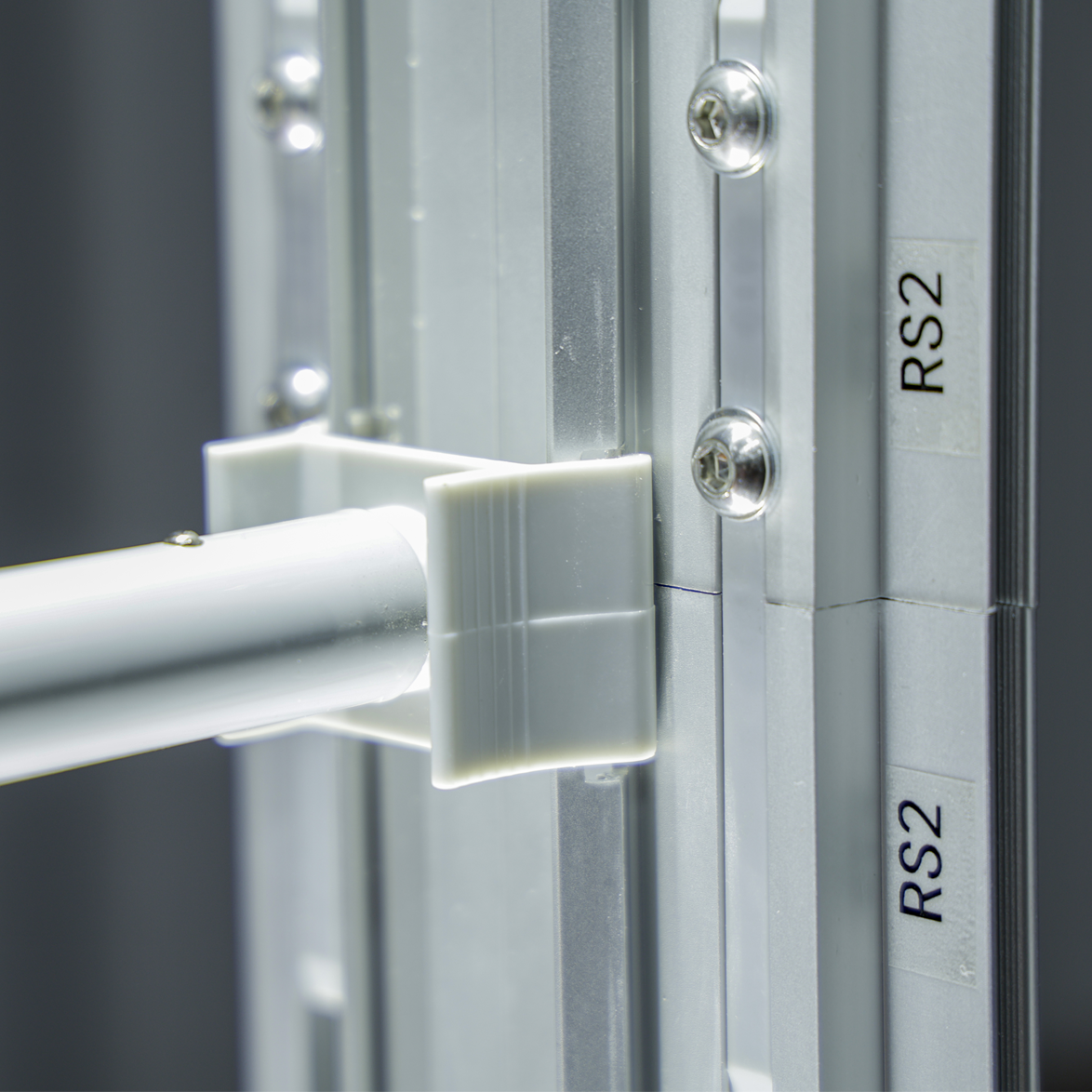

Wireless "Click-and-Connect" Reliability: The larger the wall, the more complex the wiring—usually. But our Wireless Power System means power flows through the frame connectors. Your rental team or clients simply click the rails together, and the wall lights up. No tangled cables, no setup failures.
Certified for Enterprise Tenders: Whether it's a Fortune 500 product launch or a government summit, the B1 Fire Safety, UL Power, and Drop-Test Certificates ensure you meet every safety requirement and win the bid.
Technical Specifications
Engineering Metric | Specification Detail |
Model | EM-18FA-3000 (R1 Industrial Series) |
Display Size | 118.11" (W) x 94.48" (H) x 4.72" (D) |
Light Source | LED light strip(2.8W/bead, 7083K, 514.1lm) |
Power Integration | Internal 150W Silent Driver (Built-in, No External Brick) |
Graphic Fabric | 185g/㎡ B1 Fire Rated (Direct Spray / Heat Transfer) |
Safety Certs | CE, UL, B1 Fire Rating, Drop Test Certified |
Size Guide
Item Code | Frame Size (inch) | Package | G.W (lbs) | Package Size (inch) | Package QTY |
EM-18FA | 118.11" x 94.48" | Oxford carry bag | 65 | 7.87"×23.62"×55.12" | 2 |
EM-18FA | 118.11" x 94.48" | Wheeled bag+EPP | 72 | 14.17"×14.96"×55.12" | 1 |
EM-18FA | 118.11" x 94.48" | Flight Case | 95 | 9.84"×27.17"×57.28" | 1 |

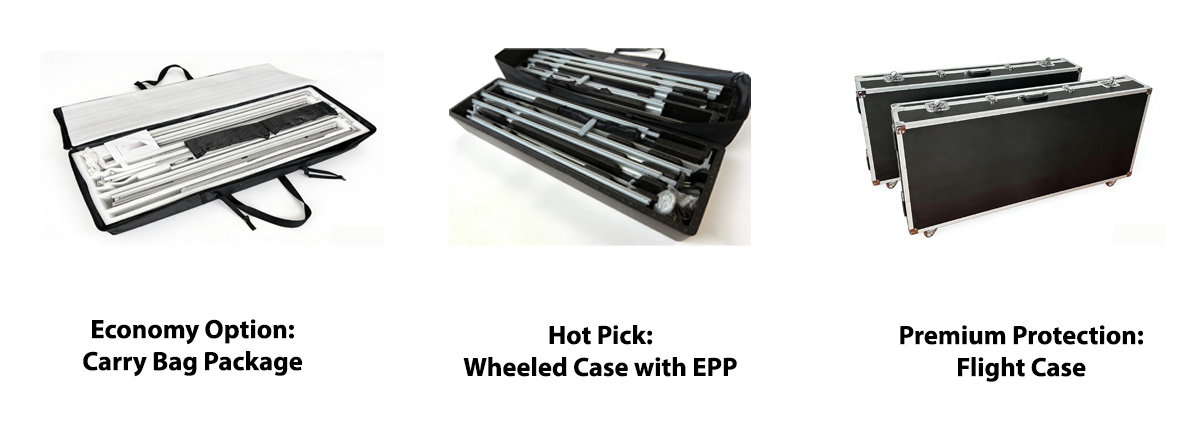

Flexible Packaging for Every Distribution Channel
Carry Bag: Ideal for local event rentals.

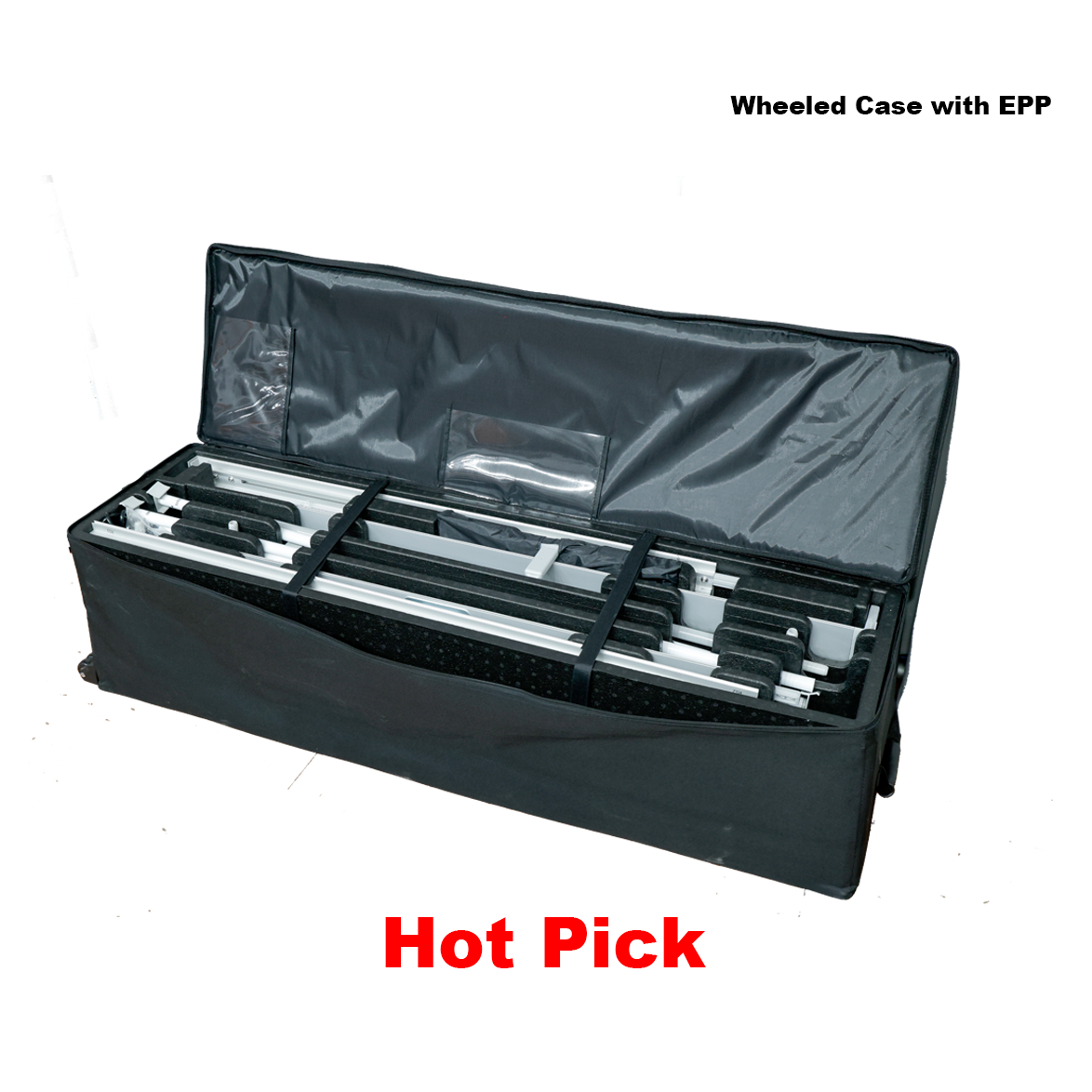

Wheeled EPP Case: The professional choice for frequent travelers.(Recommended for this size to protect the long rail segments and internal electronics.)
Heavy-Duty Flight Case: Maximum ROI for rental houses that demand 50+ turns per year.
Ready to customize your inventory?
[Apply for Distributor Wholesale Access]
[Download Power UL&CE Certificate]

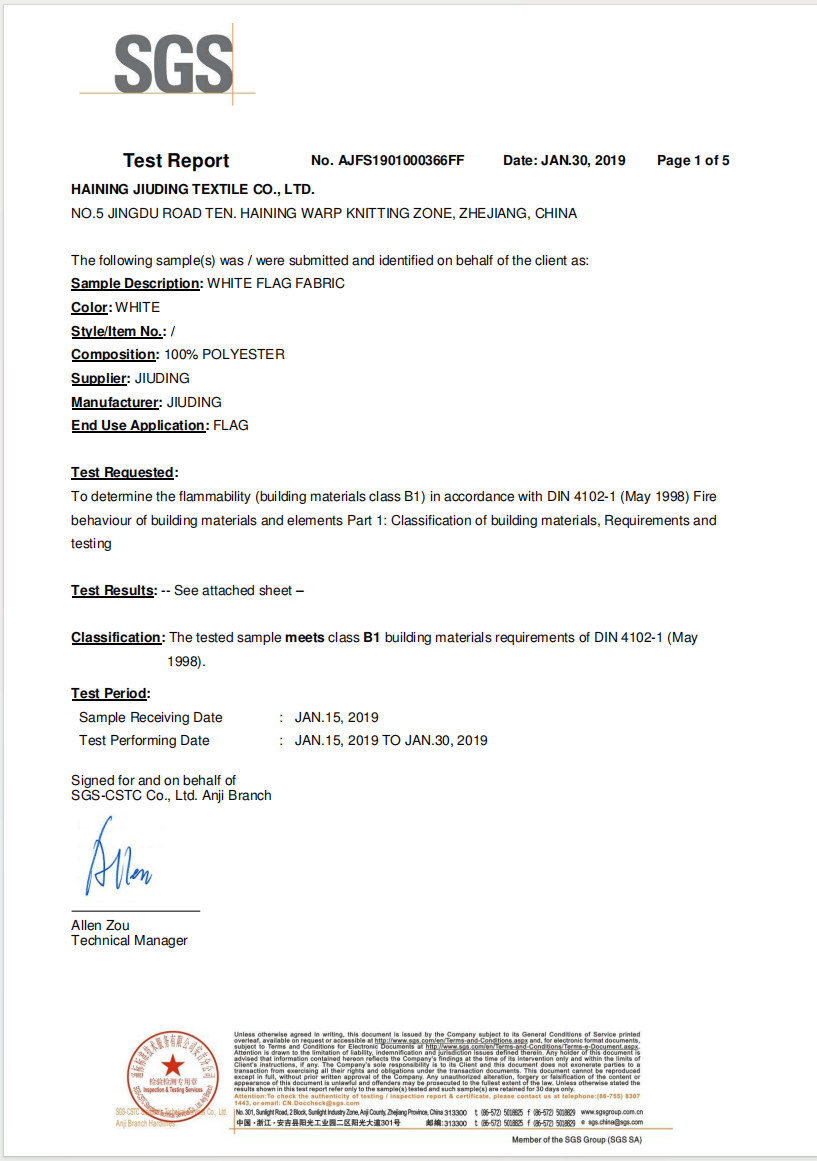

[Download B1 Fire Safety Certificate]
[Download Drop Test Certificate]
SEGQUICK: Built for professionals who need display systems that work—every single time.
