10ftx10ft 120mm SEG Lightbox Exhibtion Booth Solution 106 R1(A4D1)

3D Overlap Depth: A creative layout where the A4 trapezoid sits slightly in front of the D1 backwall, creating a layered, multi-dimensional environment in a standard 10ft space.
Panoramic 8ft Mainwall: Features the massive D1 (94.21") module, providing a vast, seamless branding surface that eliminates vertical frame breaks.
Architectural Asymmetry: The unique trapezoid silhouette of the A4 module adds a modern, high-fashion edge that commands attention on the show floor.
100% Independent Modularity: No connectors required. Simply position the frames to achieve the desired "overlap" effect. Total flexibility to adapt to any floor plan.
Industrial-Grade 120mm Depth: Both modules utilize the reinforced R1 profile, ensuring absolute stability for free-standing deployment.
Unified Daylight Glow: Consistent 6500K LED technology across all frames (including the counter) for a bright, professional brand presence.
Pro Reception Anchor: Includes the EM-08FA R1 Counter, delivering a high-quality focal point for greeting leads and client interaction.

Inquiry

R1 Solution 106 | The 10ft "Layered Horizon" Suite

Dimensional Depth Meets Seamless Light — Breaking the Flat-Wall Standard

The R1 Solution 106 is designed for exhibitors who want to "pop" out of the standard booth line. Instead of a single flat wall, this solution uses independent spatial layering. By positioning the Series A4 (Trapezoid) slightly in front of the Series D1 (2.4m Panoramic), it creates a visual "foreground-background" relationship that naturally draws the eye.

The D1 provides the massive, glowing horizon, while the A4 adds a sharp, geometric accent that can be used for secondary branding, specific product highlights, or as a decorative architectural element. Together with the EM-08FA R1 Backlit Counter, the Solution 106 offers a professional, multi-dimensional environment that looks custom-engineered but sets up with modular ease.

What’s Inside the Solution 106 Kit?

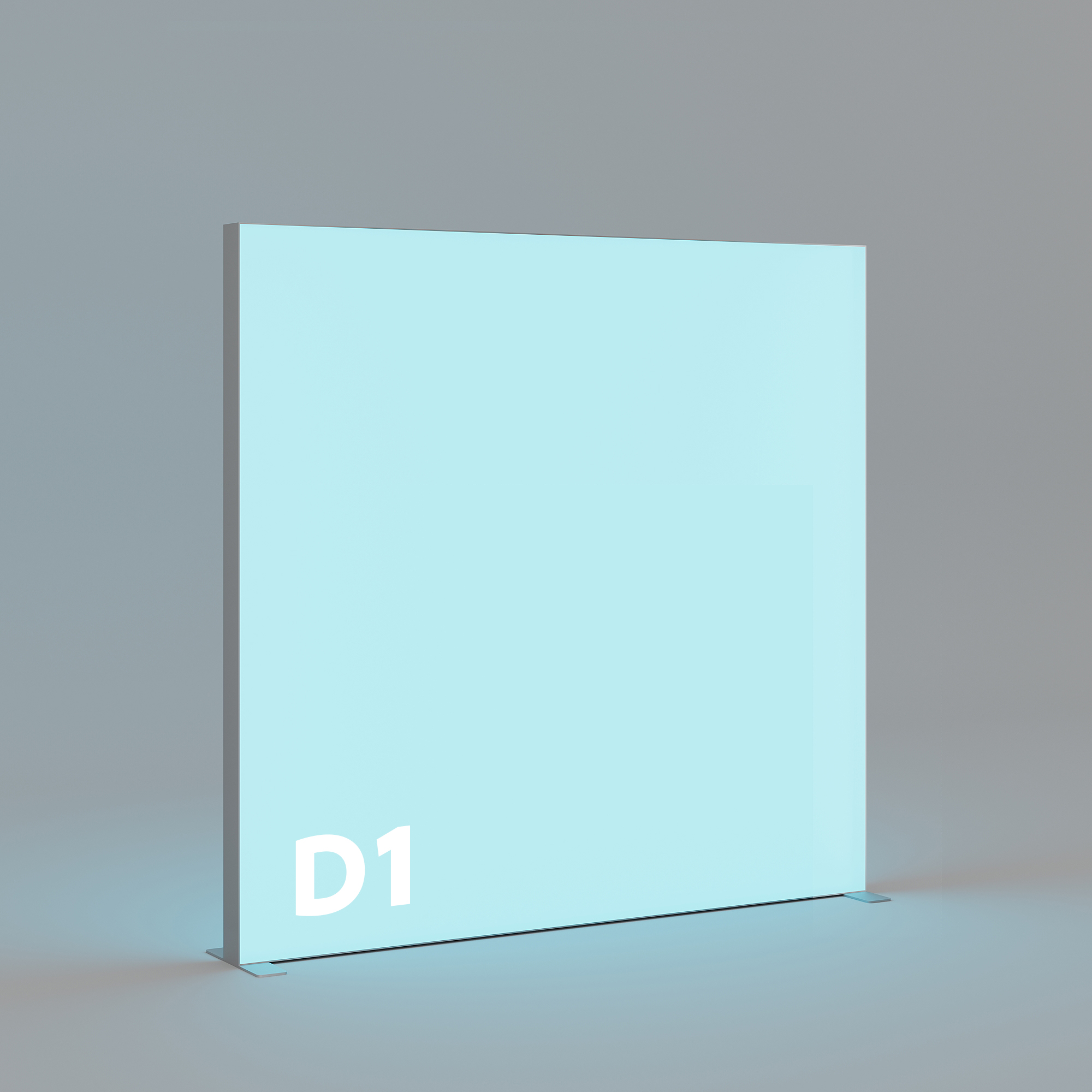

1x Panoramic Backdrop (Series D1): 94.21" x 89.76" seamless master frame.

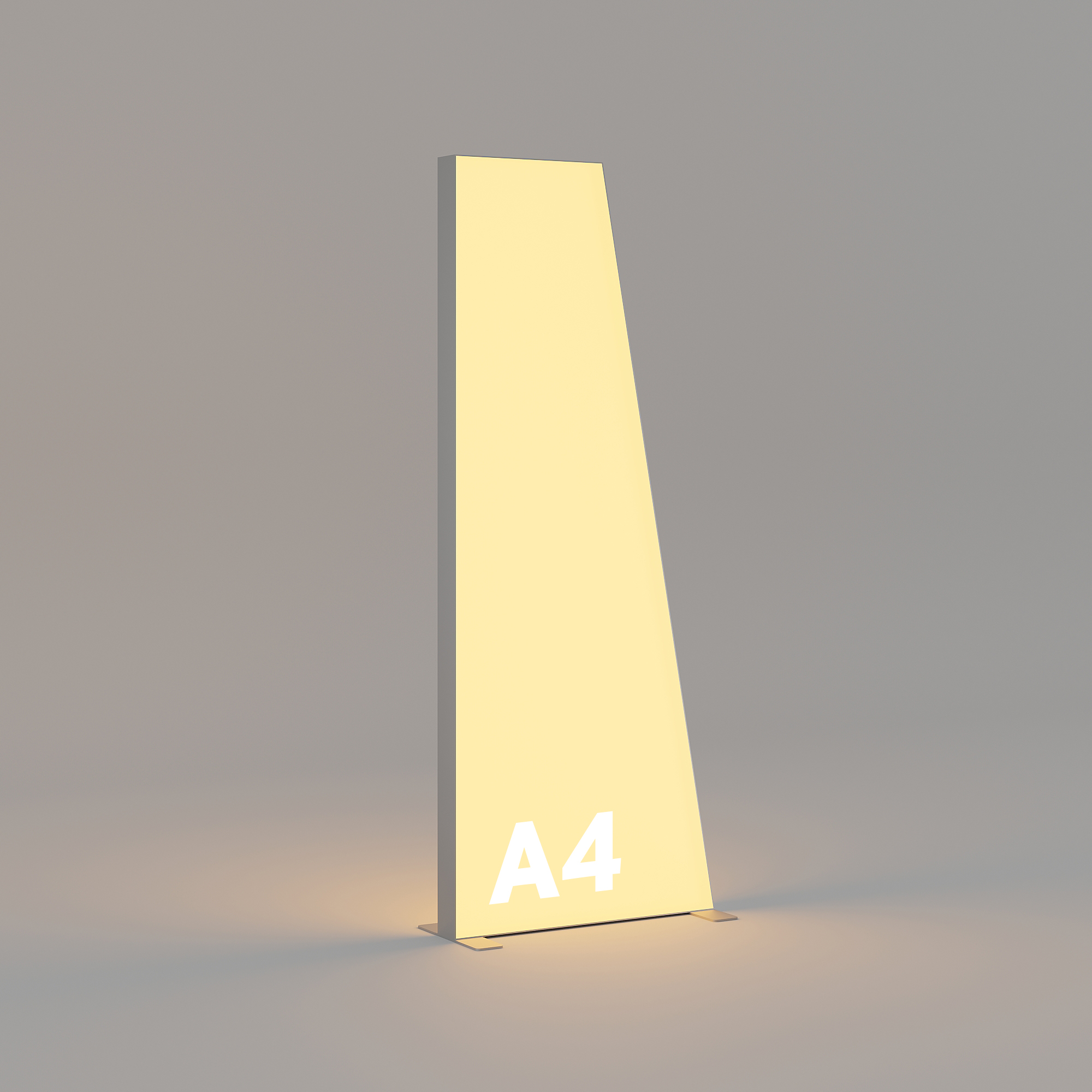

1x Geometric Foreground (Series A4): 39.37" x 103.6"/89.76" trapezoid accent module.
1x Professional Anchor (EM-08FA R1 Counter): 120mm depth backlit reception hub.

Why Solution 106 Sells

"Custom-Built" Appearance: The overlap design is a classic technique used in expensive custom exhibits. Solution 106 allows dealers to offer this "High-Design" look using 100% standard modular inventory.
Maximum Branding Surface: By layering modules, you actually increase the total square footage of illuminated fabric within the same 10ft footprint, giving your client more "real estate" for their message.
Ultimate Setup Versatility: Since there are no connectors, the "overlap" can be as wide or narrow as the client desires. This makes the kit incredibly easy to adapt to different booth depths or utility port locations.
Fastest 3D Build: A crew of one can have this multi-layered environment live in under 35 minutes. No tools, no hardware, just pure impact.

Technical Configuration

Component	Model	Dimensions (W x H)	G.W. (lbs)	Packing Size
Panoramic Wall	R1 Series D1	94.21" x 89.76"	46.30 lbs	55.9" × 18.9" × 7.9"
Trapezoid Wing	R1 Series A4	39.37" x 103.6"/89.7"	33.15lbs	55.1" x 23.6" x 7.9"
Backlit Counter	EM-08FA R1	39.37" x 39.37" x 15.75"	27.58 lbs	44.48" x 15.74" x 8.66"
Booth Footprint	Full Set	10ft x 10ft (3m x 3m)	G.W. Approx. 109 lbs	0.41cbm ( Frame Only)

Artwork Requirements

File Formats: We prefer PDF (Print Ready), AI (Text Outlined), PNG or JPEG.

Color Mode: CMYK mode ONLY. For specific branding, please provide Pantone Solid Coated codes.

Scale: Please set up files at 1:1 (Full Size) whenever possible. For extremely large files, use 1:10 scale (ensure resolution is adjusted accordingly).

Fonts: All fonts must be converted to outlines (paths) to avoid missing character issues.
