10ftx10ft 120mm SEG Lightbox Exhibtion Booth Solution 105 R1(B3B1B1B3)

Immersive "Theater" Layout: The symmetrical winged design creates a physical sense of enclosure, drawing visitors into a branded "micro-environment."
Panoramic 1.5m Wide Modules: Utilizes the B-Series 58" (1.47m) width, reducing vertical seams by 50% compared to standard 1m modules for a cleaner, high-end look.
Symmetric Oblique Skyline: The dual B3 sloped modules create a dramatic "rising and falling" silhouette, framing the brand message perfectly.
100% Connector-Free Setup: Every unit is a reinforced, free-standing lightbox. No mechanical connectors needed—maximum flexibility with zero hardware stress.
Versatile U-Shape Configuration: Independent placement allows you to adjust the "angle of the wings" to fit Corner, Inline, or Peninsula booths seamlessly.
Industrial 120mm Depth: Heavy-duty R1 profiles provide the necessary stability for large 1.5m spans and ensure a flawless, shadow-free 6500K glow.
Flagship Reception Point: Paired with the EM-08FA R1 Counter, providing a professional and illuminated focal point for engagement.

Inquiry

R1 Solution 105 | The 10ft "Immersive Wing" Suite

Symmetrical Geometry Meets Grand Format Light — The Ultimate Enclosed Brand Experience

The R1 Solution 105 is the pinnacle of modular spatial design. By pairing two Series B1 (58" Straight) modules with two Series B3 (58" Oblique) wings, this kit transforms a standard 10ft square into a sophisticated branded "Cove."

The symmetrical sloped lines of the B3 wings create a natural frame, while the massive 1.5-meter wide B1 centers provide an uninterrupted landscape for your flagship imagery. It’s an architectural statement that says your brand is bold, modern, and inviting.

What’s Inside the Solution 105 Kit?

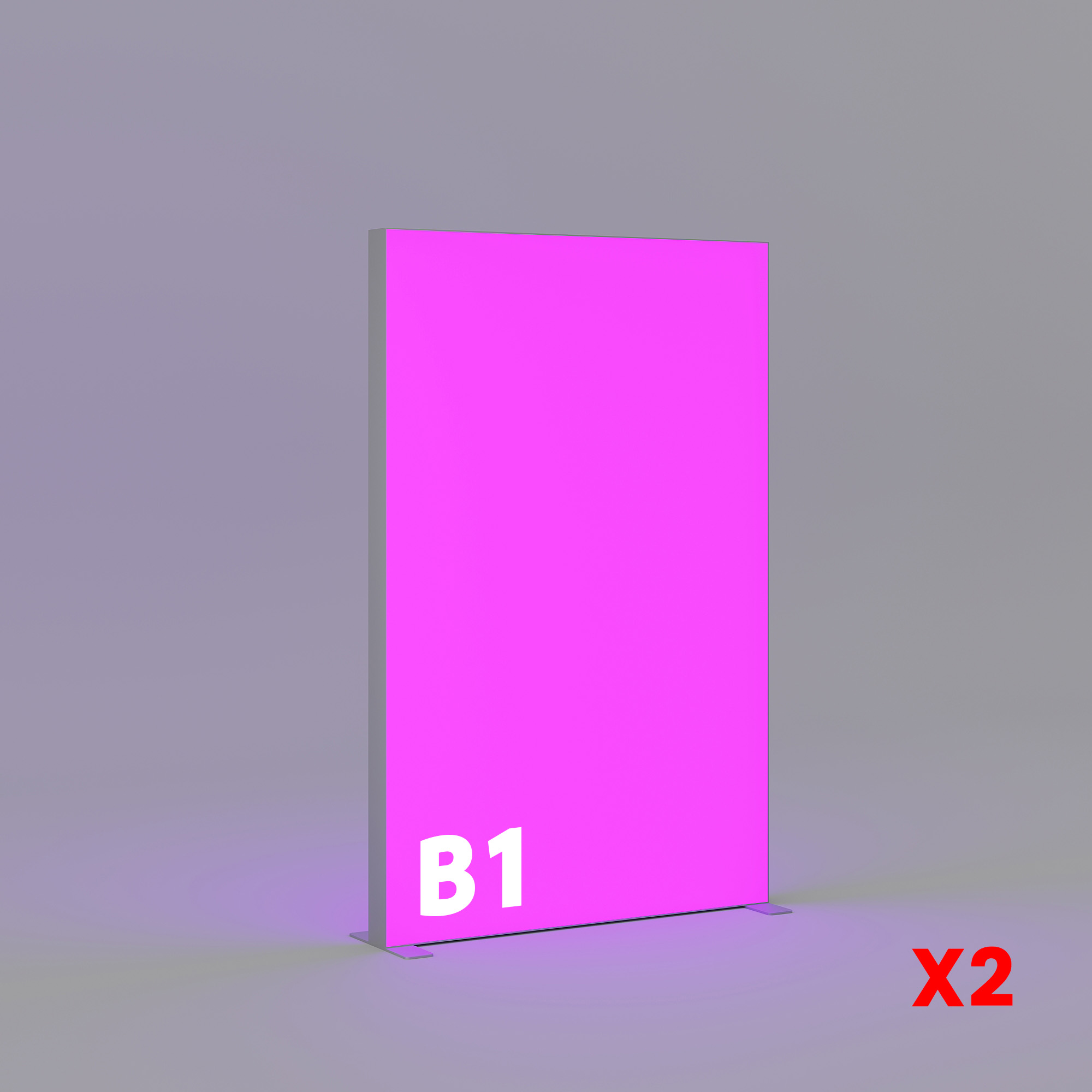

2x Panoramic Center Walls (Series B1)
- Dimensions: Each unit is 58.07" x 89.76" (1475 x 2280 mm).
- Role: These two units form the high-impact "flat" center of your backwall. Using the 1.5m wide B-series ensures 33% fewer vertical seams than standard 1m modules.

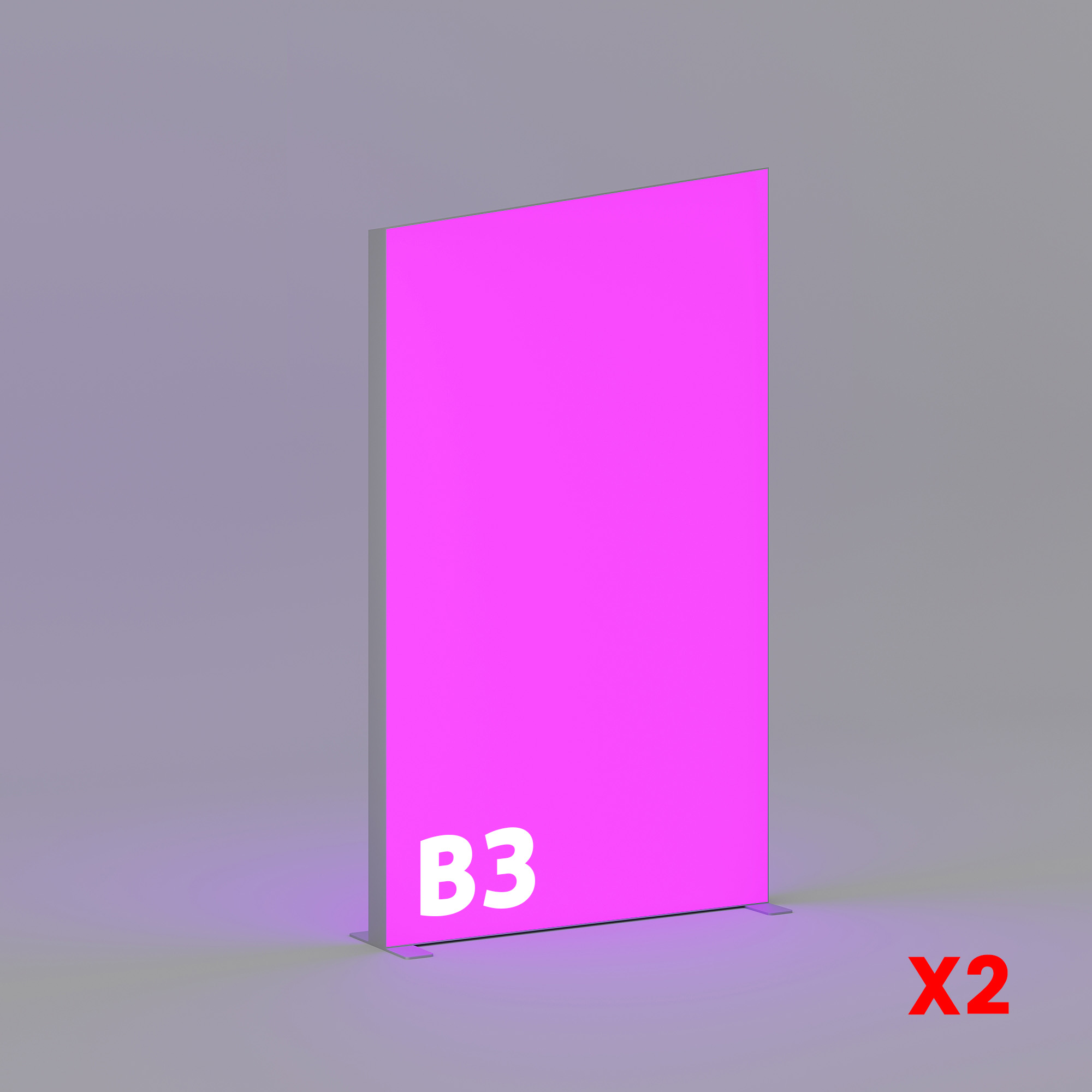

2x Architectural Wing Walls (Series B3)
- Dimensions: Each unit is 58.07" x 103.6"/89.76" (1475 x 2633/2280 mm).
- Role: Positioned on the left and right ends, these oblique (sloped) modules create the dramatic "rising" skyline effect. They are the key to the kit’s symmetrical, enclosed theater feel.
1x SEGQUICK Pro Backlit Counter (EM-08FA R1)
- Dimensions: 39.37" x 39.37" x 15.75" (1000 x 1000 x 400 mm).
- Role: The flagship 120mm depth counter serves as your central reception point. It features a heavy-duty countertop and matching internal LED illumination.

Why Solution 105 Sells

"Wide-Format" Efficiency: Dealers love the B-Series because it covers more ground with fewer pieces. 1.5m modules mean faster setup and fewer vertical lines to disrupt the graphics.
High-End Spatial Psychology: The winged layout creates a "safe" interior space, encouraging visitors to step into the booth and stay longer, increasing the quality of lead interactions.
Total Inventory Fluidity: The B1 and B3 modules are the workhorses of any rental fleet. They can be used as standalone 5ft towers, 10ft straight walls, or this flagship 10ft U-shape.
Zero-Tool Speed: No connectors to align or lose. Simply place the four free-standing units, plug them in, and the booth is show-ready in under 40 minutes.

Technical Configuration

Component	Model	Dimensions (W x H)	G.W. (lbs)	Packing Size (inch)
Straight modules	R1 Series B1	58.07" 89.76"	36.38 lbs	55.9" × 18.9" × 7.9" × 2
Sloped modules	R1 Series B3	58.07" × 89.76" / 96.69"	37.70 lbs	55.9" × 18.9" × 7.9" × 2
Backlit Counter	EM-08FA R1	39.37" x 39.37" x 15.7"	27.58 lbs	44.48" x 15.74" x 8.66"
Full Booth Set	Solution 105	10ft x 10ft (3m x 3m)	~178 lbs	0.65cbm ( Frame Only)

Artwork Requirements

File Formats: We prefer PDF (Print Ready), AI (Text Outlined), PNG or JPEG.

Color Mode: CMYK mode ONLY. For specific branding, please provide Pantone Solid Coated codes.

Scale: Please set up files at 1:1 (Full Size) whenever possible. For extremely large files, use 1:10 scale (ensure resolution is adjusted accordingly).

Fonts: All fonts must be converted to outlines (paths) to avoid missing character issues.
